“A work platform is perfect for working at height. Since people work on it, quality and stability are crucial.”
At HAB you will find first class and high quality aerial work platforms that differ from the standard. We attach great importance to a stable construction, ease of maintenance, a compact design and power. Quality components such as modern motors make electric platforms more efficient and our diesel devices are equipped with a soot particle filter with low emissions.

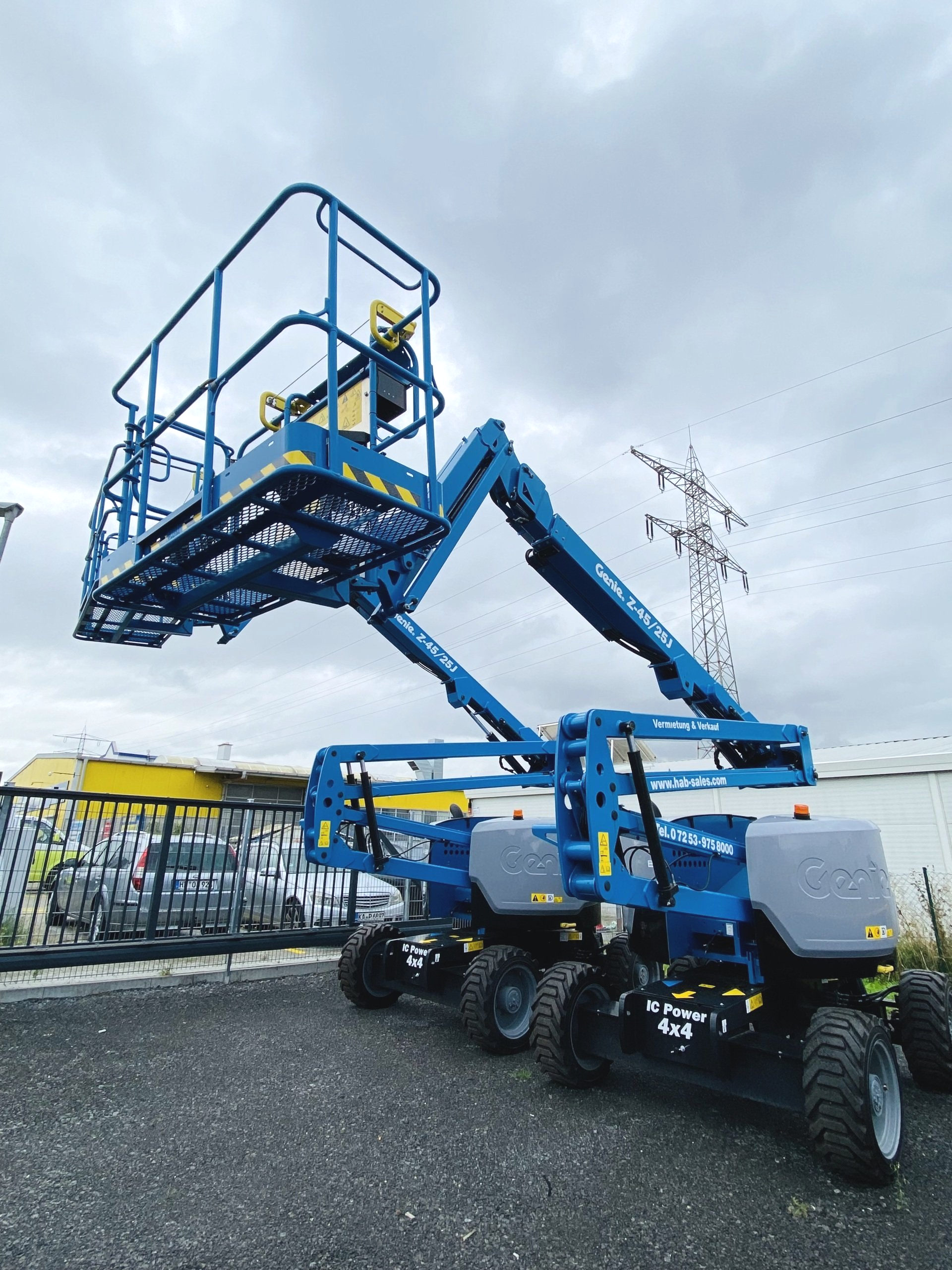

Articulated telescopic Boom
| Z45-25J RT | Technical Specification |
|---|---|
| Arbeitshöhe I Working height (A) | 15.85 m |
| Plattformhöhe I Platform height (B) | 13.86 m |
| Plattform Abmessung I Platform size (C) | 1.83 m x 0.76 m |
| Plattformverlängerung I Platform extension (D) | - |
| Radstand I Wheelbase | 2.03 m |
| Bodenfreiheit I Ground clearance | 0.37 m |
| Max. Bodendruck pro Rad I Max ground bearing pressure per wheel | - |
| Nennlast I Capacity | 227 kg |
| Verfahrbar bis I Driveable in | full height I volle Höhe |
| Fahrgeschwindigkeit in km/h (e/a) I Drive speed in km/h (l/e)** | 0.8 km/h |
| Äußerer Wenderadius I Outer turning radius | 1.68 m |
| Innerer Wenderadius I Inner turning radius | 4.50 m |
| Antriebsart I Drive | D |
| Akkus/ Verbrennungsmotor I Engine | Deutz 35.8 kW |
| Schwenkbereich I Jib rotation | 135° |
| Korbdrehung I Platform rotation | 160° |
| Max. Neigung I Max. inclination | - |
| Steigfähigkeit I Gradeability | Ca. 30 % |
| Eigengewicht I Weight | 6123 kg |
| Außeneinsatz I External use | ● |
| Allradantrieb I 4WD | ● |
| Allradlenkung I 4WS | ● |
| Abstützung I Outrigger | - |
| Transporthöhe I Stowed height (E) | 2.13 m |
| Transportlänge I Length (F) | 6.65 m |
| Transportbreite I Width (G) | 2.29 m |
©Genie
QR-Code anklicken und das Datenblatt als
PDF downloaden / Click to download the data sheet
Please find further information about HAB Engineering GmbH on www.hab-sales.com. I *Specifications and illustrations are subject to change without prior notice or obligation. /All technical features, descriptions and illustrations are subject to change without prior notice. I **e = retracted / a = extended I e =elevated / l =lowered. I Contact: info@hab-sales.com
