“A working platform is perfect for applications at great height. As people work on it, quality and stability are particularly important."
HAB offers only high-quality products. We attach great importance to a stable construction, ease of maintenance, a compact design and power. Quality components such as modern engines make electric platforms more efficient, and our diesel devices are low in emissions thanks to a particulate filter.

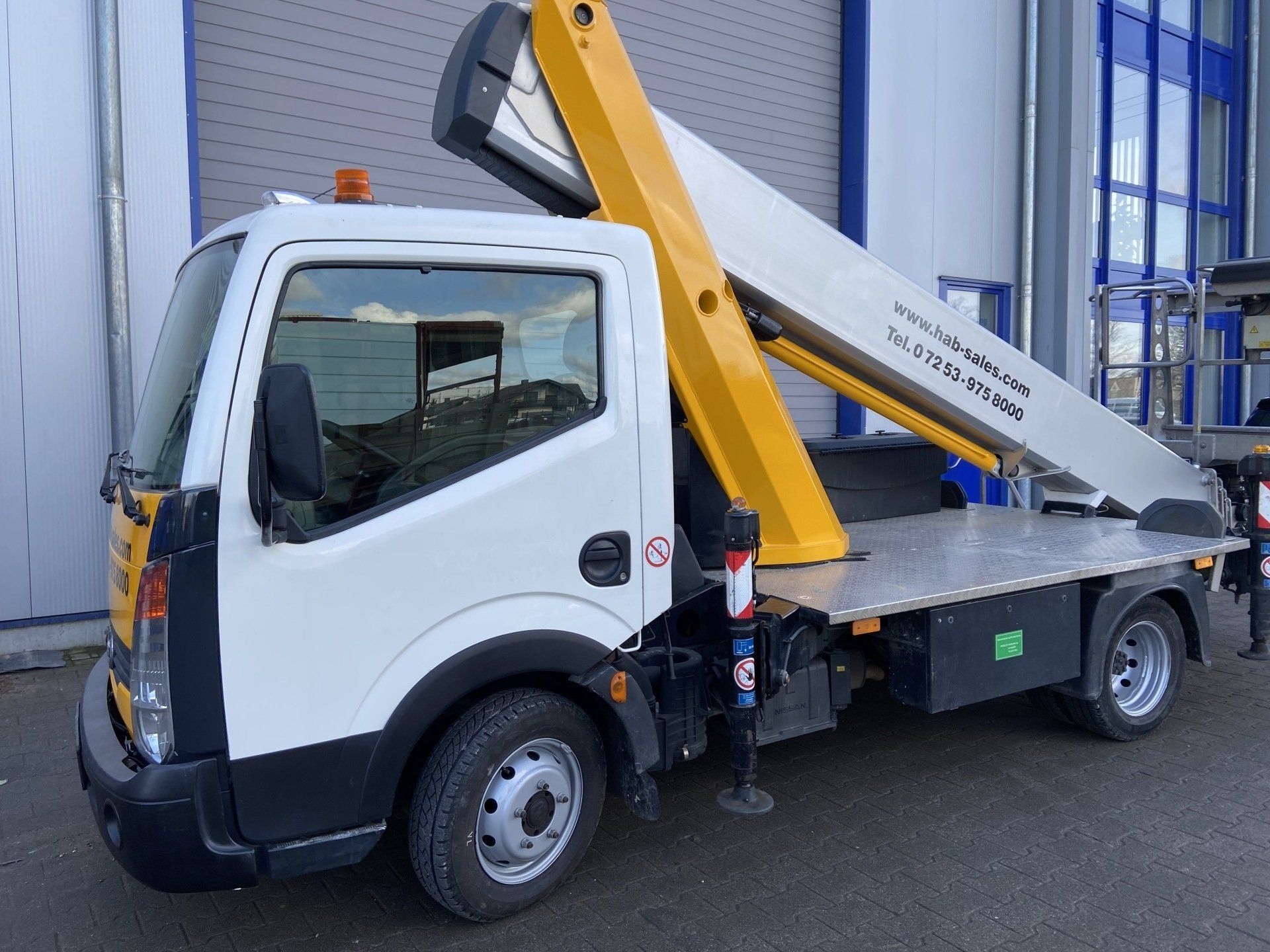

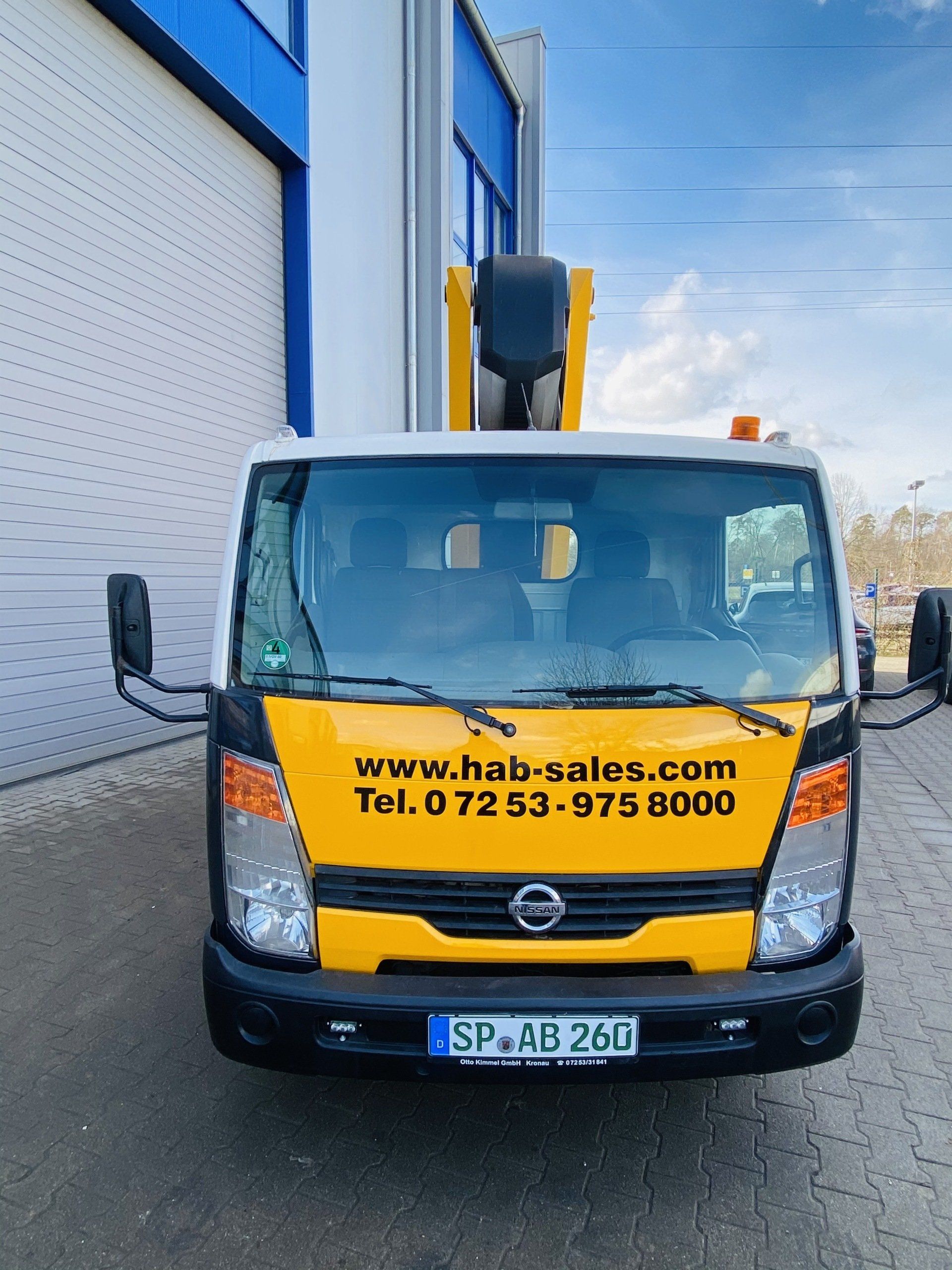

Truck aerial platform
| P260 B | Technical specifications |
|---|---|
| Arbeitshöhe I Working height | 25.8 m |
| Arbeitskorbabmessung I Platform size | 1.39 x 0.69 x 1.12 m |
| Schwenkbereich I Basket Rotation | 2 x 90° |
| Nennlast I Net load | 230 kg |
| Bodenhöhe I Ground Level | 23.8 m |

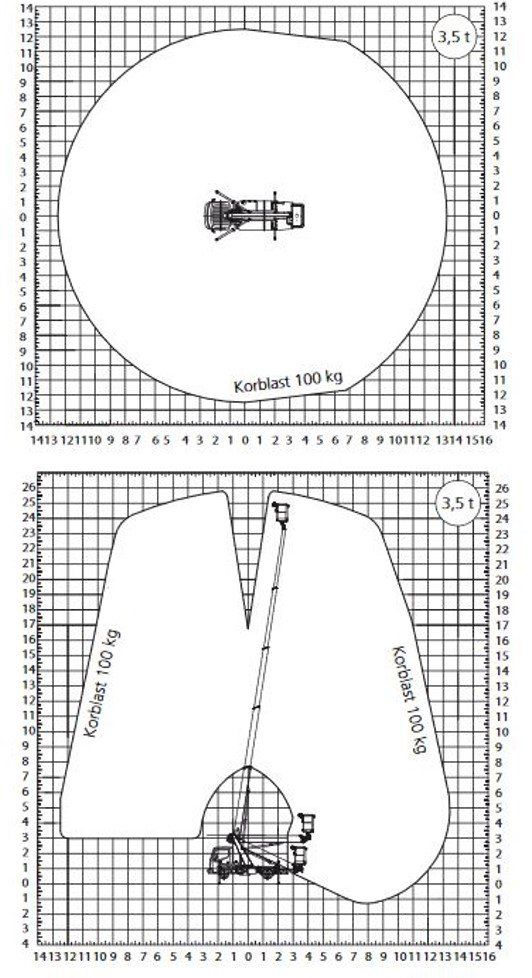

| Max. Reichweite (Korblast 100kg) I Max. Outreach | 13.5 m |
| Max. Abstützbreite* I Width with stabilisers out | 3.32 m |
| Max. zulässige Aufstellneigung I Max. Inclination | 5° |
| Schwenkbereich I Turntable Rotation | 500° |
| Trägerfahrzeug und Motage am Fahrzeug: | |
| Länge I Length | 6.68 m |
| Breite I Width | 2.10 m |
| Höhe I Height | 2.95 m |
| Böschungswinkel I Approach angle | 12° |
| Hydrauliköltank mit Rücklauffilter, Füllmenge I Tank Capacity | 60l |
* Support area from center to center of backing pad
Source: Palfinger
Click on the QR code and download the data sheet
Weitere Informationen über HAB Engineering GmbH finden Sie unter/ Please find further information about HAB Engineering GmbH on www.hab-sales.com. I *Technische Daten und Illustrationen können ohne vorherige Ankündigung oder Verbindlichkeit geändert werden. /All technical features, descriptions and illustration are subject to change without prior notice. I **e = eingefahren / a = ausgefahren I e =elevated / l =lowered. I Kontakt/Contact: info@hab-sales.com
