“A work platform is perfect for working at heights. Since people work on it, quality and stability are crucial.”
At HAB you will find first-class, high-quality work platforms that differ from the standard. We attach great importance to a stable construction, ease of maintenance, a compact design and power. Quality components such as modern engines make electric platforms more efficient and our diesel devices have low emissions thanks to the fact that they are equipped with a soot particle filter.
Electric scissor lift

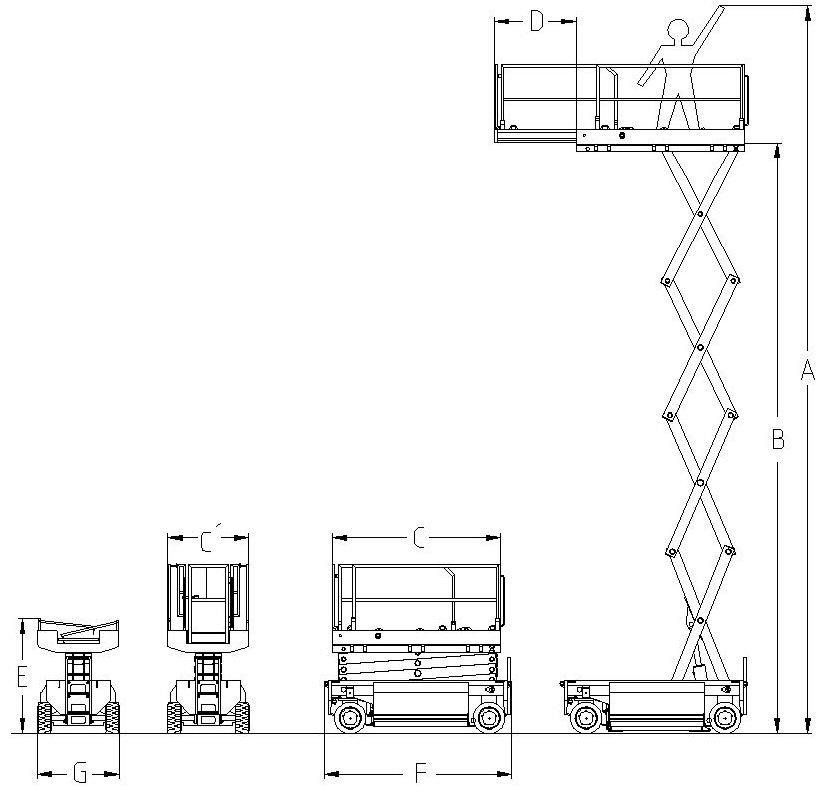

| S 105-12 E2WD | Technical Specification |
|---|---|
| Arbeitshöhe I Working height (A) | 10.50 m |
| Plattformhöhe I Platform height (B) | 8.63 m |
| Plattform Abmessung I Platform size (C) | 2.49 m x 1.19 m |
| Plattformverlängerung I Platform extension (D) | 1.20 m |
| Radstand I Wheelbase | 2.02 m |
| Bodenfreiheit I Ground clearance | 105 mm |
| Max. Bodendruck pro Rad I Max ground bearing pressure per wheel | 60 N/cm² |
| Nennlast I Capacity | 350 kg |
| Verfahrbar bis I Driveable in | volle Höhe |
| Fahrgeschwindigkeit in km/h (e/a) I Drive speed in km/h (l/e)** | 4.5/0.7 |
| Äußerer Wenderadius I Outer turning radius | 2.48 m |
| Innerer Wenderadius I Inner turning radius | 0.10 m |
| Antriebsart I Drive | E |
| Akkus/ Verbrennungsmotor I Engine | 4 x 6 V – 195/220 Ah |
| Hubzeit I Lifting time | Ca. 35 Sec |
| Senkzeit I Lowering time | Ca. 35 Sec |
| Max. Neigung I Max. inclination | |
| Steigfähigkeit I Gradeability | Ca. 25 % |
| Eigengewicht I Weight | |
| Außeneinsatz I External use | - |
| Allradantrieb I 4WD | - |
| Allradlenkung I 4WS | - |
| Abstützung I Outrigger | - |
| Transporthöhe I Stowed height (E) | 1.70 m |
| Transportlänge I Length (F) | 2.73 m |
| Transportbreite I Width (G) | 1.19 m |
Click on the QR code and save the data sheet
Download PDF
Further information about HAB Engineering GmbH can be found at Please find further information about HAB Engineering GmbH on www.hab-sales.com. I *Technical data and illustrations are subject to change without notice or liability. /All technical features, descriptions and illustrations are subject to change without prior notice. I **e = retracted / a = extended I e =elevated / l =lowered. I Contact: info@hab-sales.com
