“A working platform is perfect for applications at great height. As people work on it, quality and stability are particularly important."
HAB offers only high-quality products. We attach great importance to a stable construction, ease of maintenance, a compact design and power. Quality components such as modern engines make electric platforms more efficient, and our diesel devices are low in emissions thanks to a particulate filter.
Diesel scissor lift
| S 165-24D4WDS SP | Technical specifications |
|---|---|

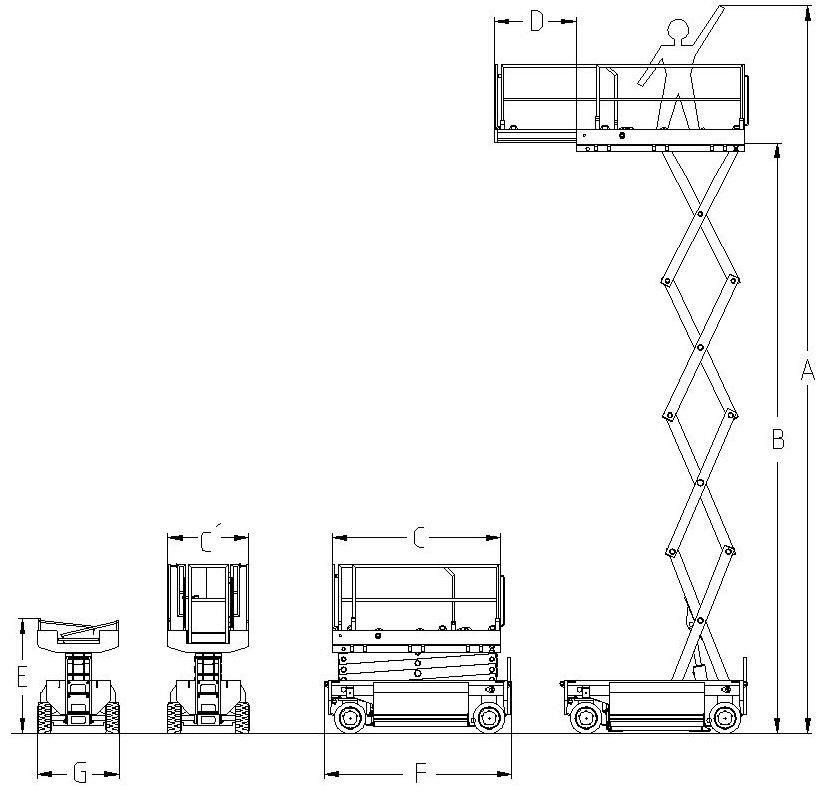

| Arbeitshöhe I Working height (A) | 16.50 m |
| Plattformhöhe I Platform height (B) | 14.50 m |
| Plattform Abmessung I Platform size (C) | 5.50 m x 2.39 m |
| Plattformverlängerung I Platform extension (D) | 1.20 m |
| Radstand I Wheelbase | 3.20 m |
| Bodenfreiheit I Ground clearance | 350 - 240 mm |
| Max. Bodendruck pro Rad I Max ground bearing pressure per wheel | 55 N/cm² |
| Nennlast I Capacity | 500 kg |
| Verfahrbar bis I Driveable in | full height |
| Fahrgeschwindigkeit in km/h (e/a) I Drive speed in km/h (l/e)** | 4.5/4.5 |
| Äußerer Wenderadius I Outer turning radius | 5.50 m |
| Innerer Wenderadius I Inner turning radius | 3.50 m |
| Antriebsart I Drive | D |
| Akkus/ Verbrennungsmotor I Engine | HATZ 24V 4H50TI XI 36,4 kW |
| Hubzeit I Lifting time | Ca. 58 Sec |
| Senkzeit I Lowering time | Ca. 58 Sec |
| Max. Neigung I Max. inclination | 3° |
| Steigfähigkeit I Gradeability | Ca. 40 % |
| Eigengewicht I Weight | 10300 kg |
| Außeneinsatz I External use | ● |
| Allradantrieb I 4WD | ● |
| Allradlenkung I 4WS | - |
| Abstützung I Outrigger | ● |
| Transporthöhe I Stowed height (E) | 2.60 m |
| Transportlänge I Length (F) | 5.50 m |
| Transportbreite I Width (G) | 2.46 m |
This model has a lateral platform extension
Click on the QR code and download the data sheet
Weitere Informationen über HAB Engineering GmbH finden Sie unter/ Please find further information about HAB Engineering GmbH on www.hab-sales.com. I *Technische Daten und Illustrationen können ohne vorherige Ankündigung oder Verbindlichkeit geändert werden. /All technical features, descriptions and illustration are subject to change without prior notice. I **e = eingefahren / a = ausgefahren I e =elevated / l =lowered. I Kontakt/Contact: info@hab-sales.com
