“A telescopic platform must be all-terrain. The basket load of up to 350 kg is also a must these days. "
At HAB you will find first-class, high-quality work platforms that differ from the standard. We attach great importance to a stable construction, ease of maintenance, a compact design and power. Quality components such as modern engines make electric platforms more efficient, and our diesel devices are low in emissions thanks to the fact that they are equipped with a soot particle filter.
Telescopic crawler boom

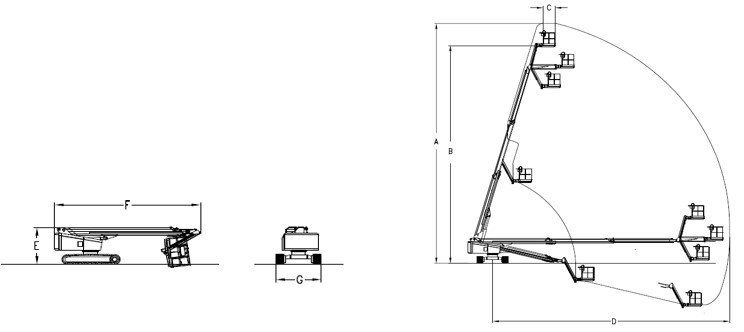

| TR 28 JD | Technical specifications |
|---|---|
| Arbeitshöhe I Working height (A) | 28.00 m |
| Plattformhöhe I Platform height (B) | 26.00 m |
| Plattform Abmessung I Platform size (C) | 2.00 m x 0.78 m |
| Seitliche Reichweite I Horizontal reach (D) | 22.50 m |
| Radstand I Wheelbase | - |
| Bodenfreiheit I Ground clearance | 350 mm |
| Nennlast I Capacity | 350 kg |
| Plattformschwenkbereich I Platform rotation | +/-90° |
| Korbarm-Schwenkbereich I Vertical jib rotation | 140° (+73.5/-65.5) |
| Oberwagenüberhang I Tailswing | 925 mm |
| Fahrgeschwindigkeit in km/h (e/a) I Drive speed km/h (e/l)** | 2.6/0.7 |
| Steigfähigkeit I Gradeability | 60% |
| Äußerer Wenderadius I Outer turning radius | - |
| Innerer Wenderadius I Inner turning radius | - |
| Steuerung I Controls | Proportional |
| Antriebsart I Power | D |
| Verbrennungsmotor I Power source | HATZ 48 KW |
| Eigengewicht I Weight | 21300 kg |
| Pendelachse I Oscillating axle | - |
| Transporthöhe I Stowed height (E) | 2.63 m |
| Transportlänge I Length (F) | 10.51 m |
| Transportbreite I Width (G) | 2.50 m |
Click on the QR code and download the data sheet
This model is equipped with a particulate filter and has a capacity of 350 kg
Weitere Informationen über HAB Engineering GmbH finden Sie unter/ Please find further information about HAB Engineering GmbH on www.hab-sales.com. I *Technische Daten und Illustrationen können ohne vorherige Ankündigung oder Verbindlichkeit geändert werden. /All technical features, descriptions and illustration are subject to change without prior notice. I **e = eingefahren / a = ausgefahren I e =elevated / l =lowered. I Kontakt/Contact: info@hab-sales.com
